66 deluxe bus 13 window

nyr208 · Post by **nyr208** » Tue Jan 31, 2017 4:26 pm

Tore apart my front passenger seat and painted them. Will be putting it back together soon.

Raj · Post by **Raj** » Wed Feb 01, 2017 12:21 pm

Looking good! Get yourself a nice set of hogring pliers if you dont already have, and you'll be back in business in no time flat.

Big_kid · Post by **Big_kid** » Wed Feb 01, 2017 7:37 pm

I was told to get good hogring pliers- the day after I ordered the cheap ones. I have no idea how well they work, the following day I read to use zip ties instead. Mine's a buggy, they're out of sight out of mind, so I went with it.

nyr208 · Post by **nyr208** » Thu Feb 02, 2017 4:12 pm

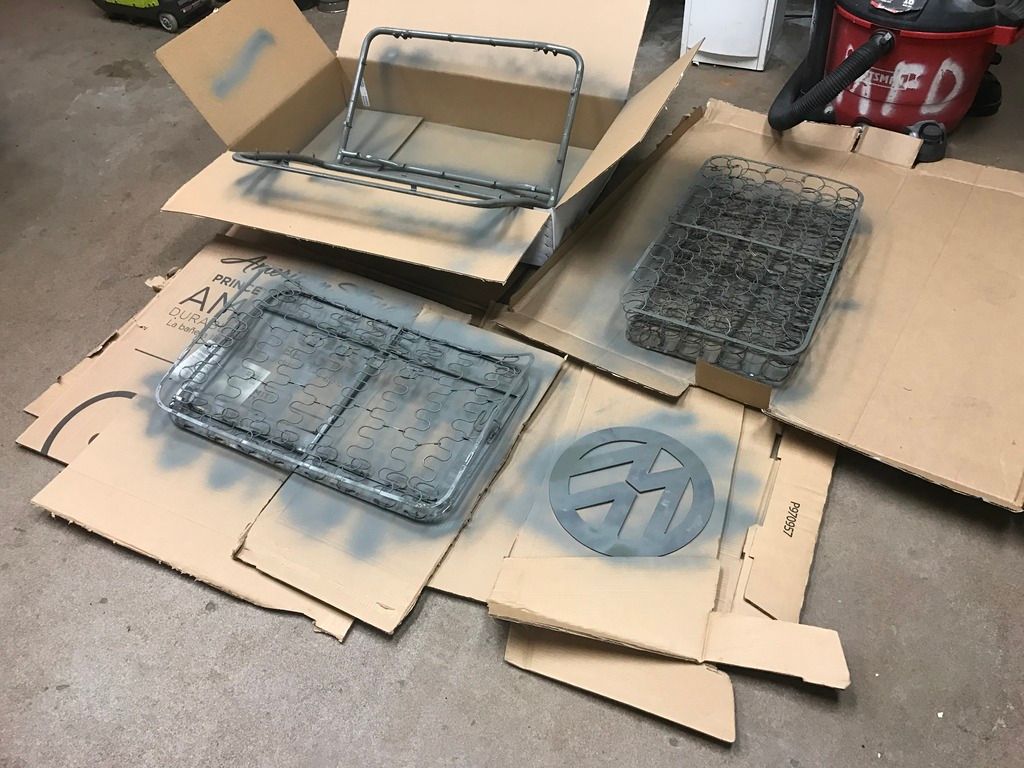

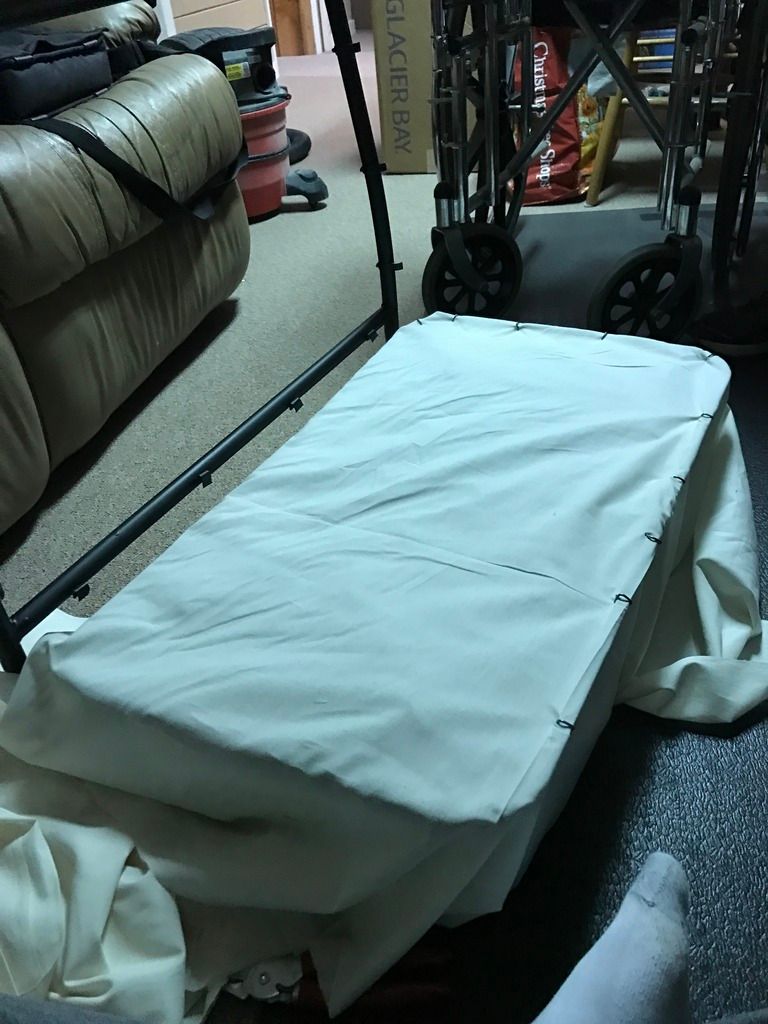

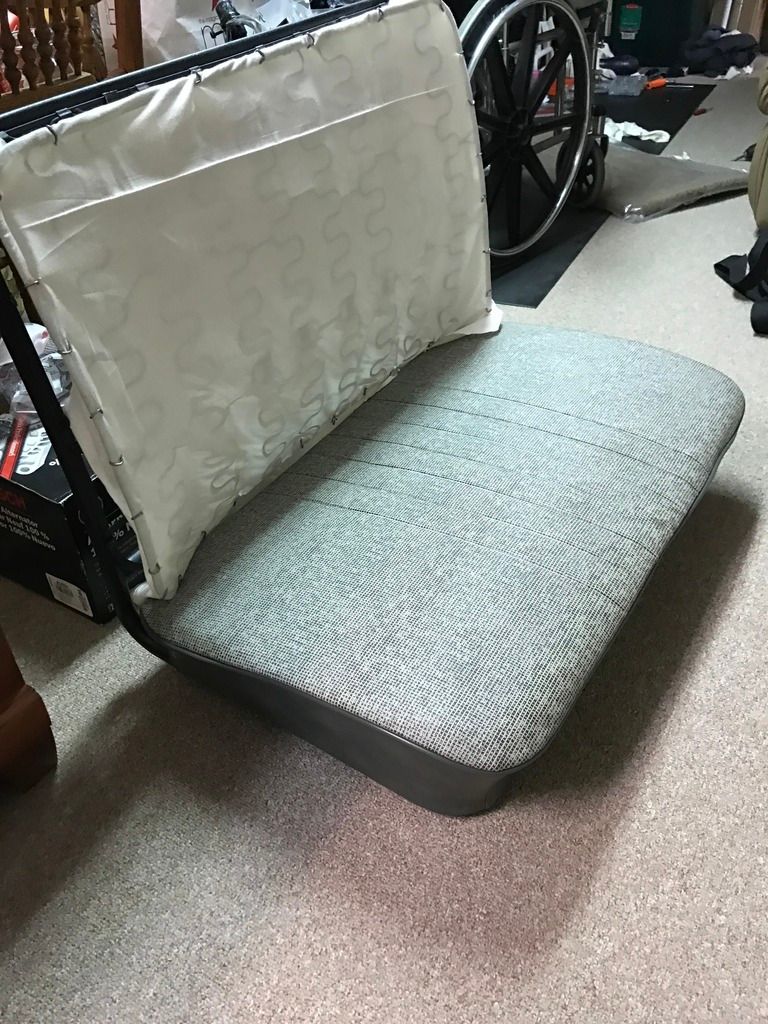

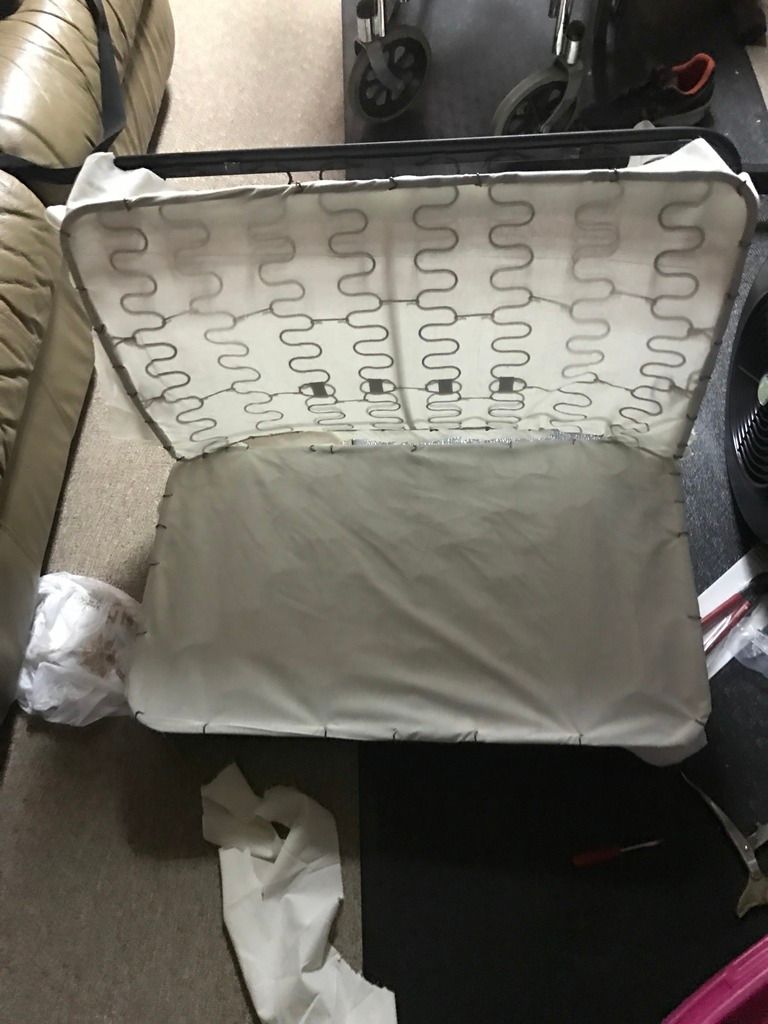

Painted the frame with 2 coats of primer then 2 coats of black. Then put fabric around the springs

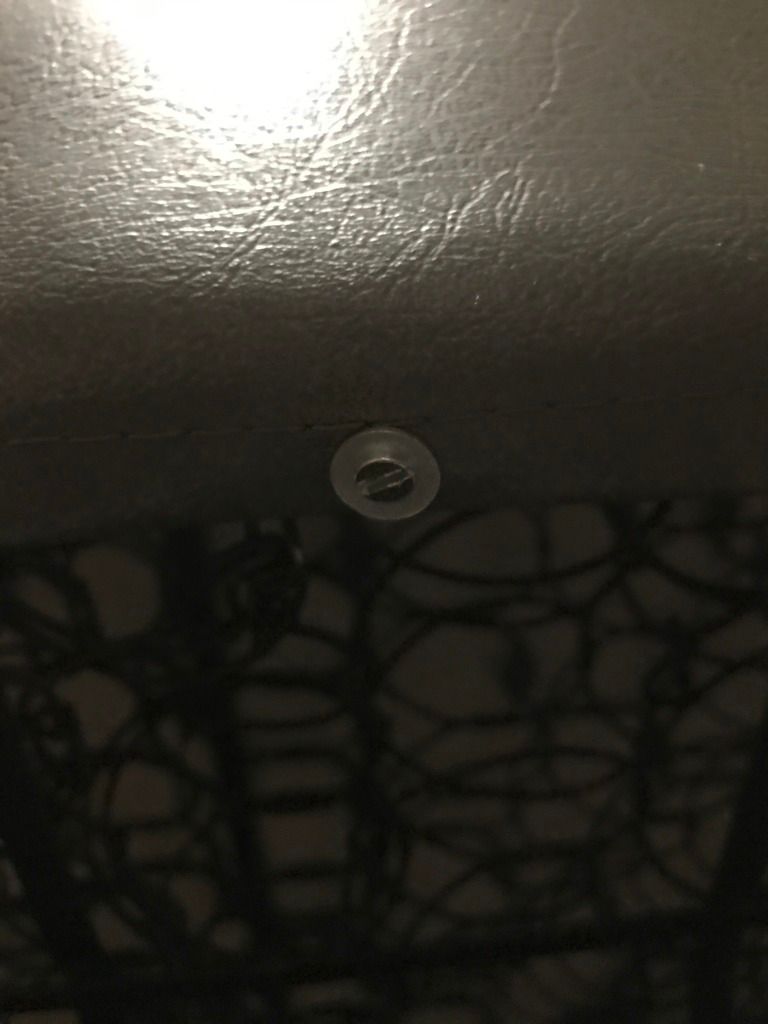

A lot of the sharp edges were broken so I put small screws in there place

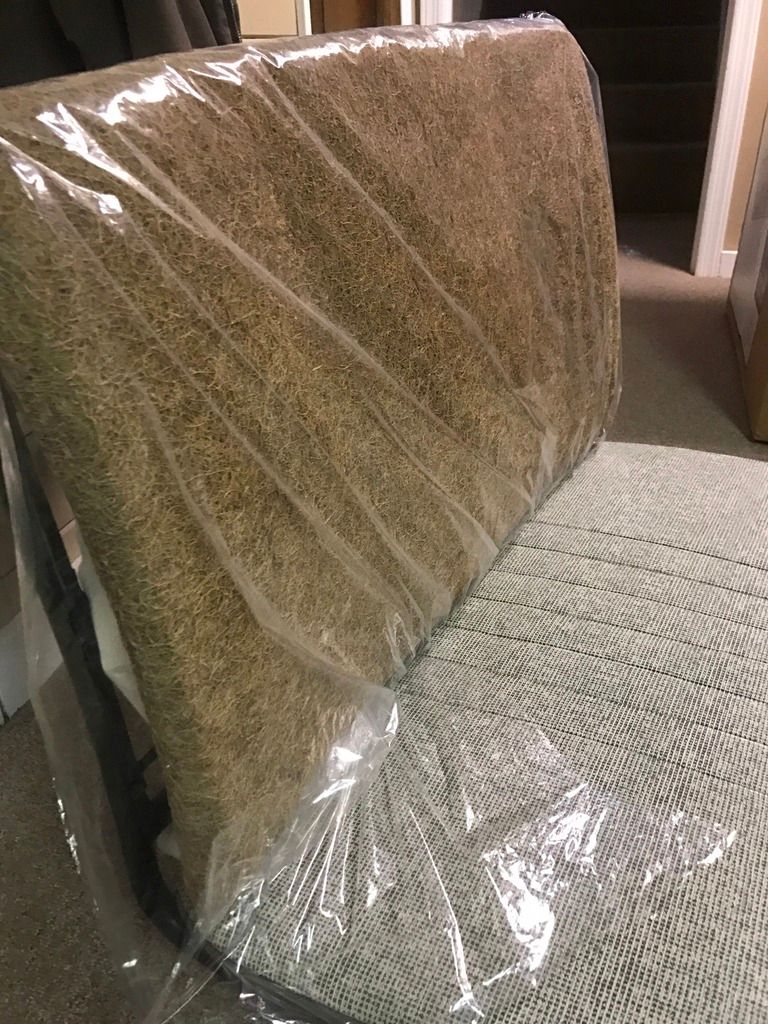

For the top half I put a small piece of plastic over the horse hair to make the covers slip over

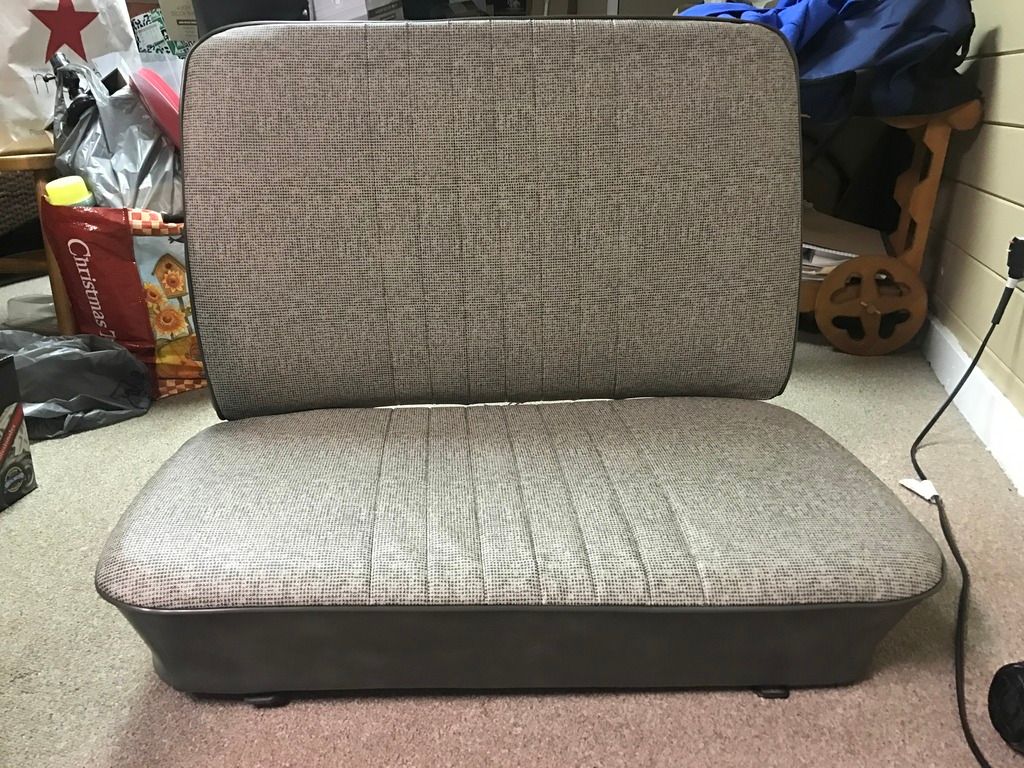

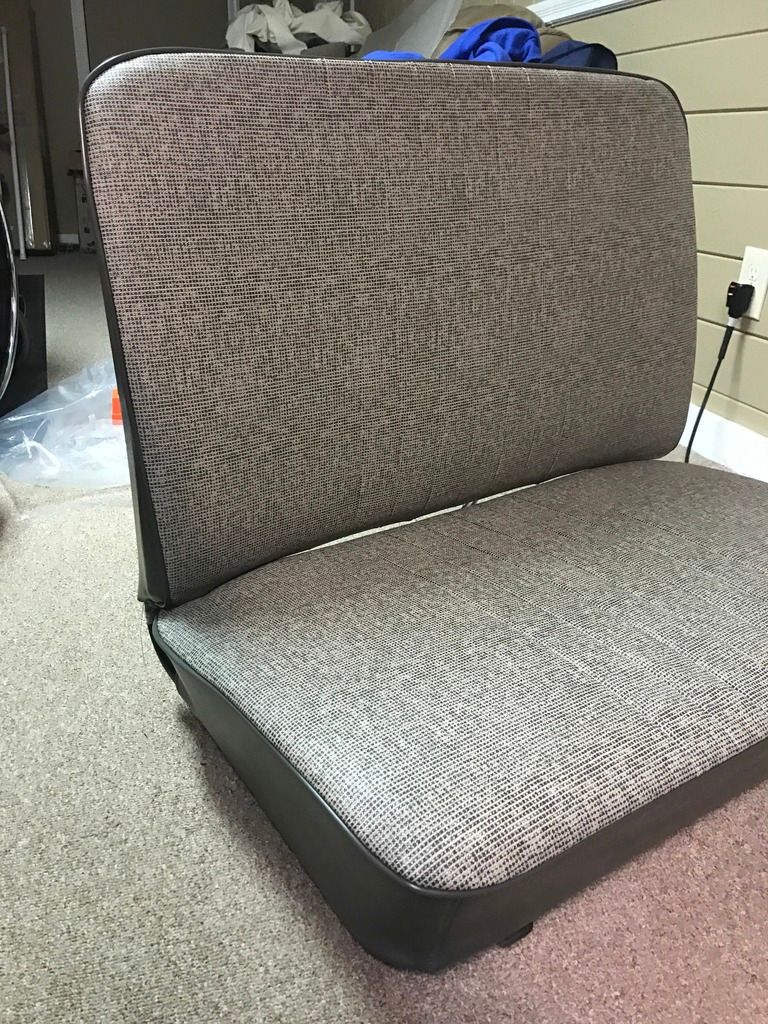

I'm happy with how the 2/3 seat turned out. Today I ripped apart the drivers seats and will be completing next week

Raj · Post by **Raj** » Thu Feb 02, 2017 5:47 pm

looks good. Its amazing what a little elbow grease and new covers can do.

Big_kid · Post by **Big_kid** » Thu Feb 02, 2017 10:57 pm

GORGEOUS!!!

nyr208 · Post by **nyr208** » Fri Feb 03, 2017 5:49 pm

Thanks for the kind words.

I took apart my drivers seat and the bottom frame fell apart in my hands it was so rusty. Going to go ahead and complete the top half of the seat while I locate a bottom half.

nyr208 · Post by **nyr208** » Mon Feb 20, 2017 9:23 pm

Found a drivers seat in Jersey. Picked it up and painted it.

I stripped the floor of the front cab and started to paint it with por15. After I get a couple more coats on it I will prime and repaint.

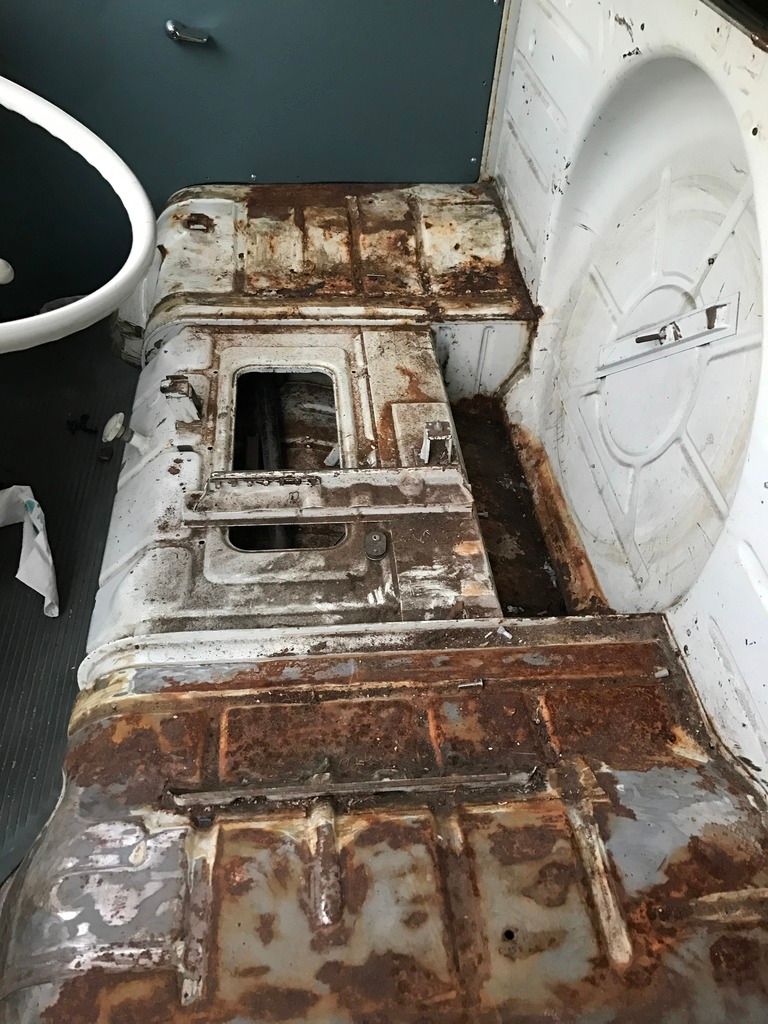

What I started with

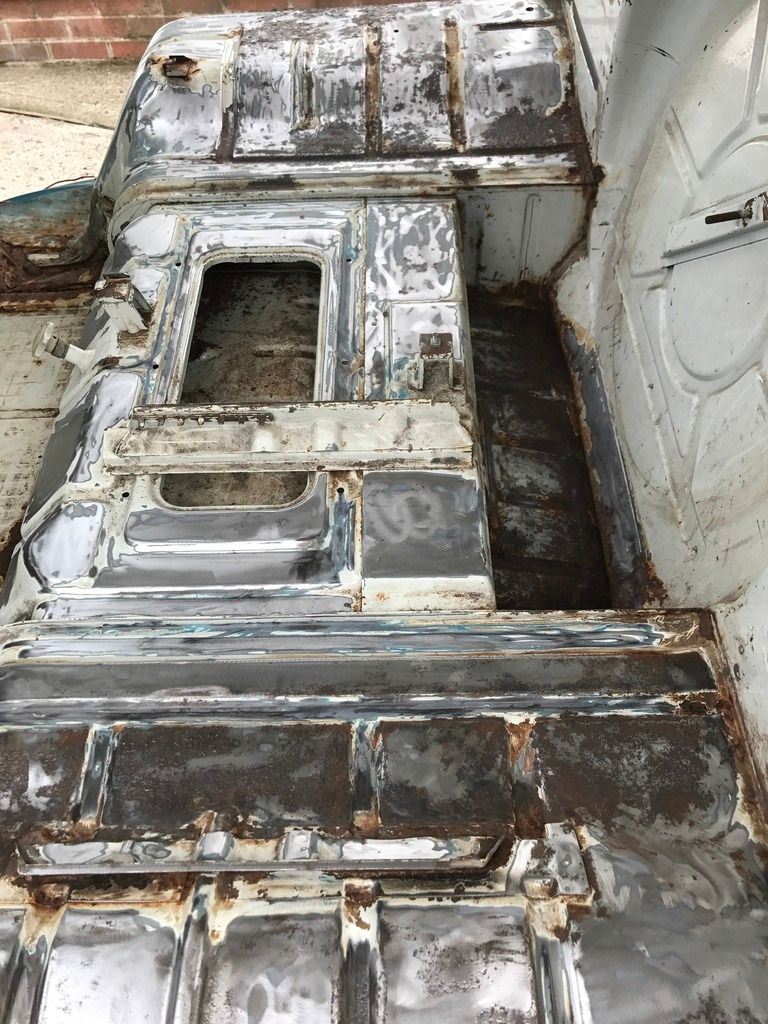

Grinded off some loose rust

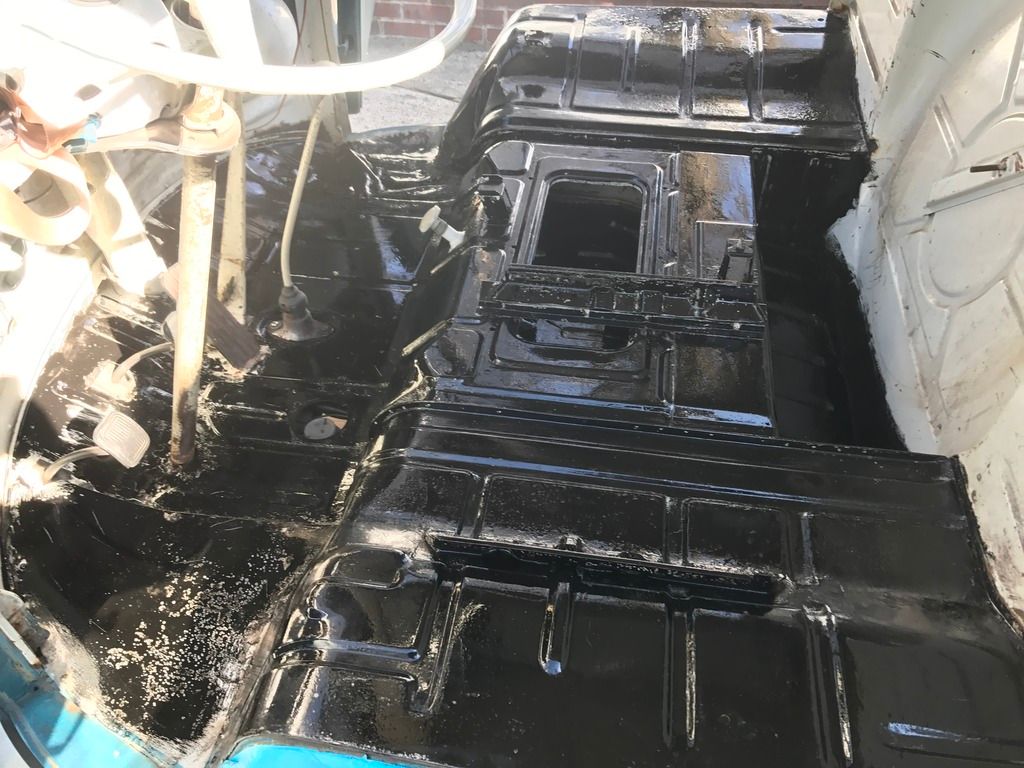

1 coats of por15

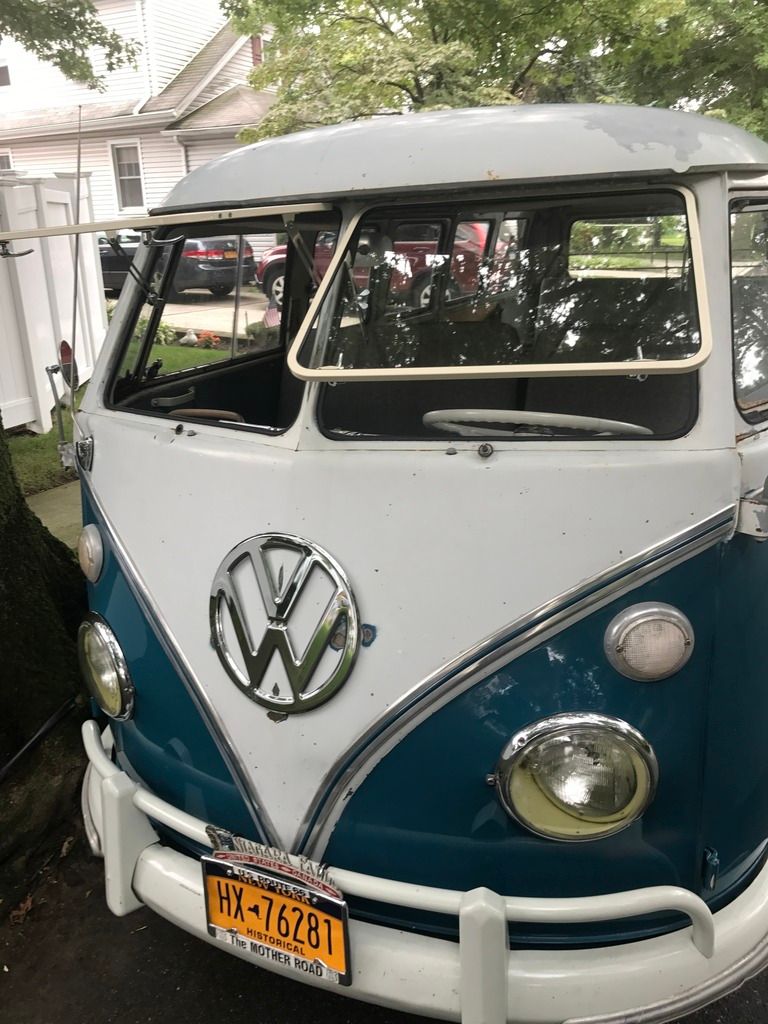

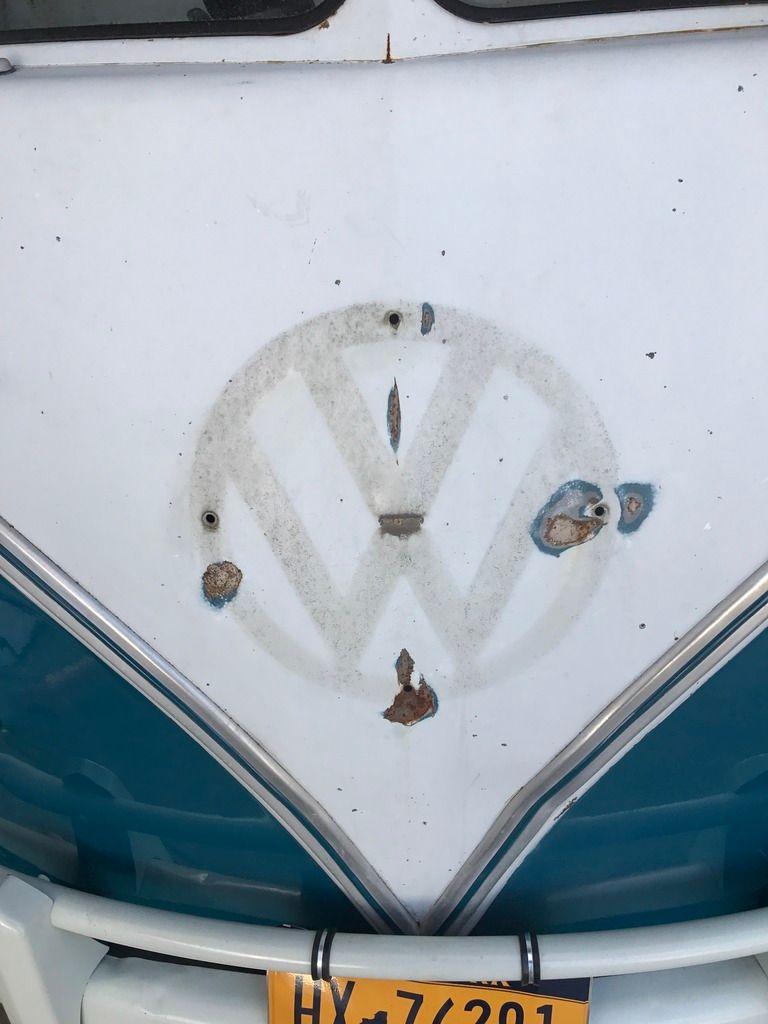

Took off the front emblem which was a repo. Going to clean up the nose, put a layer of wax on then get a new emblem

nyr208 · Post by **nyr208** » Mon Feb 20, 2017 9:26 pm

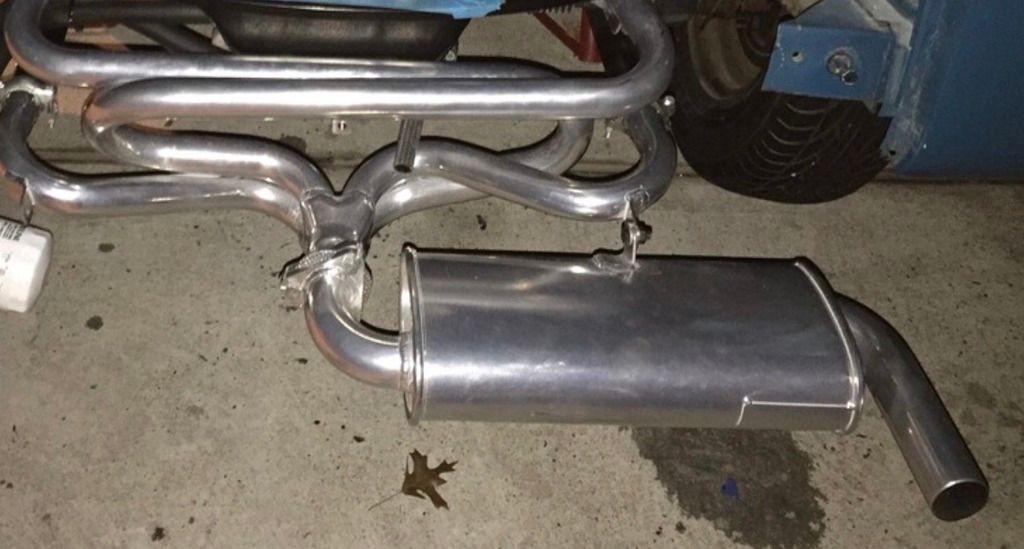

Looking for a new exhaust. What I am currently running is extremely loud. Looking for a quieter option. Any suggestion?

Raj · Post by **Raj** » Thu Feb 23, 2017 7:18 am

Stock exhaust is quiet.. but rather restrictive and ehhh... ' stockish'.

What size motor is it again?

nyr208 · Post by **nyr208** » Thu Feb 23, 2017 10:13 am

2017cc

Raj · Post by **Raj** » Thu Feb 23, 2017 11:30 am

nyr208 wrote:2017cc

I wouldn't do the stock muffler on a 2L....Too restrictive. Have you checked out the options form Vintage Speed? I have only heard good things.
http://www.vintagespeed.com.tw/Exhausts ... -main.html

The problem you are going to have is that most non restrictive options are ' louder' than stock. For the most part, Its the restriction in flow that reduces the decibels..... that's the rub.

nyr208 · Post by **nyr208** » Sat Mar 04, 2017 8:28 pm

Raj wrote:
nyr208 wrote:2017cc

I wouldn't do the stock muffler on a 2L....Too restrictive. Have you checked out the options form Vintage Speed? I have only heard good things.
http://www.vintagespeed.com.tw/Exhausts ... -main.html

The problem you are going to have is that most non restrictive options are ' louder' than stock. For the most part, Its the restriction in flow that reduces the decibels..... that's the rub.

Looking into vintage speed and a sidewinder exhaust. Waiting to get some little projects done first and my tax return check.

nyr208 · Post by **nyr208** » Sat Mar 04, 2017 8:31 pm

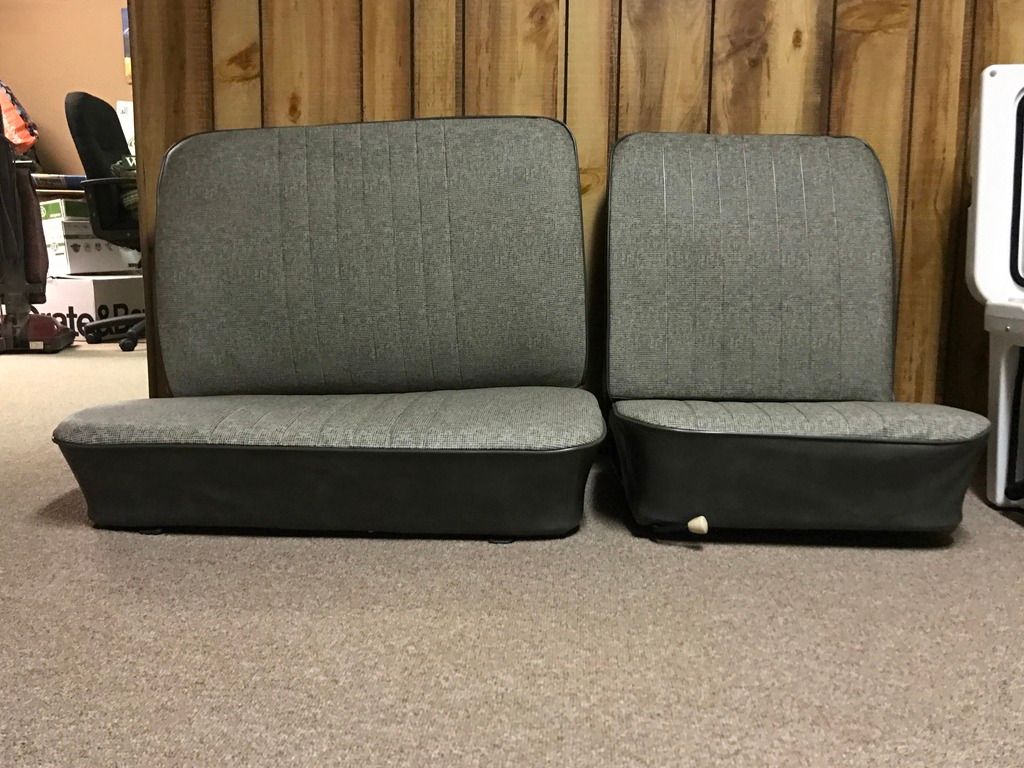

Finally got the drivers seat done

Also finished putting a couple of coats of por15 and primer on the front cab floors. Will shoot it white during the week and put in new matts and seats

Raj · Post by **Raj** » Mon Mar 06, 2017 9:57 am

Is the pass seat ' slanted' ( looking at the back rest) or is it just the way its propped against the wall?

EDNCAROL · Post by **EDNCAROL** » Mon Mar 06, 2017 6:42 pm

It looks fine in all the rest of the pictures.

AoT · Post by **AoT** » Mon Mar 06, 2017 7:01 pm

nyr208 wrote:Finally got the drivers seat done

Also finished putting a couple of coats of por15 and primer on the front cab floors. Will shoot it white during the week and put in new matts and seats

Seats look great. Love the fabric choice. I did a set for my bug and my bus and it is a tricky project. Will really make the bus pop!

nyr208 · Post by **nyr208** » Tue Mar 07, 2017 12:31 am

Raj wrote:Is the pass seat ' slanted' ( looking at the back rest) or is it just the way its propped against the wall?

Just the way it's resting

nyr208 · Post by **nyr208** » Tue Mar 07, 2017 12:34 am

AoT wrote:
nyr208 wrote:Finally got the drivers seat done

Also finished putting a couple of coats of por15 and primer on the front cab floors. Will shoot it white during the week and put in new matts and seats

Seats look great. Love the fabric choice. I did a set for my bug and my bus and it is a tricky project. Will really make the bus pop!

Thanks I bought the covers from TMi so installation wasn't too bad. Worst part was dealing with all the broken clips on the seat frame.

nyr208 · Post by **nyr208** » Thu Mar 09, 2017 4:05 pm

Before

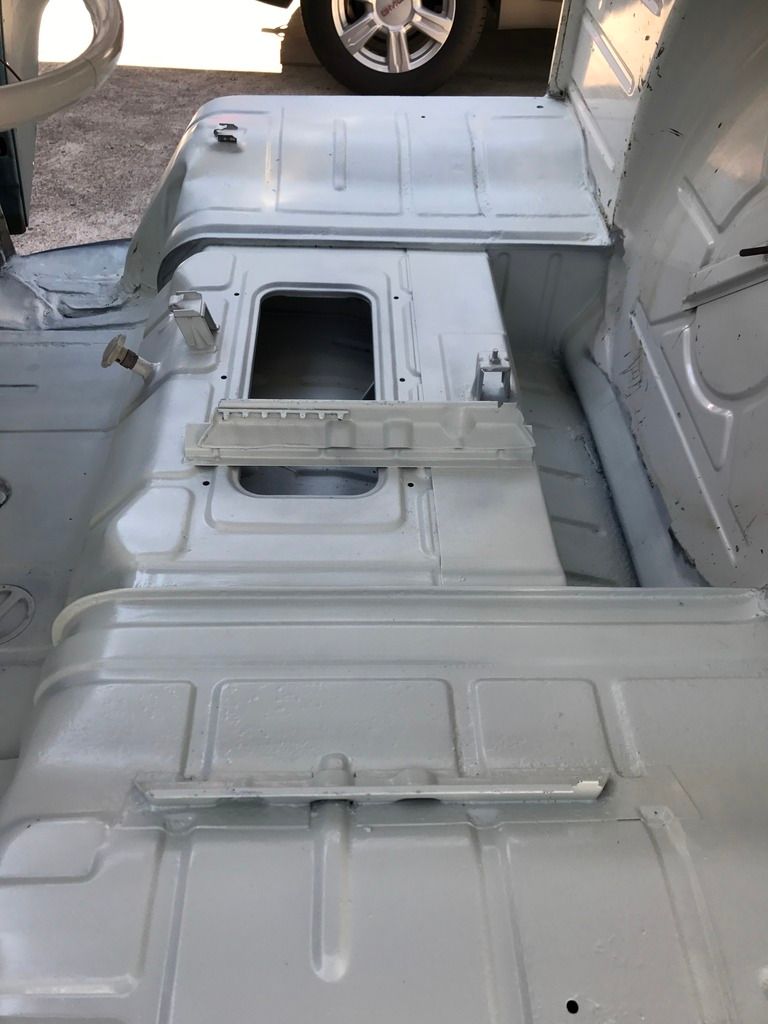

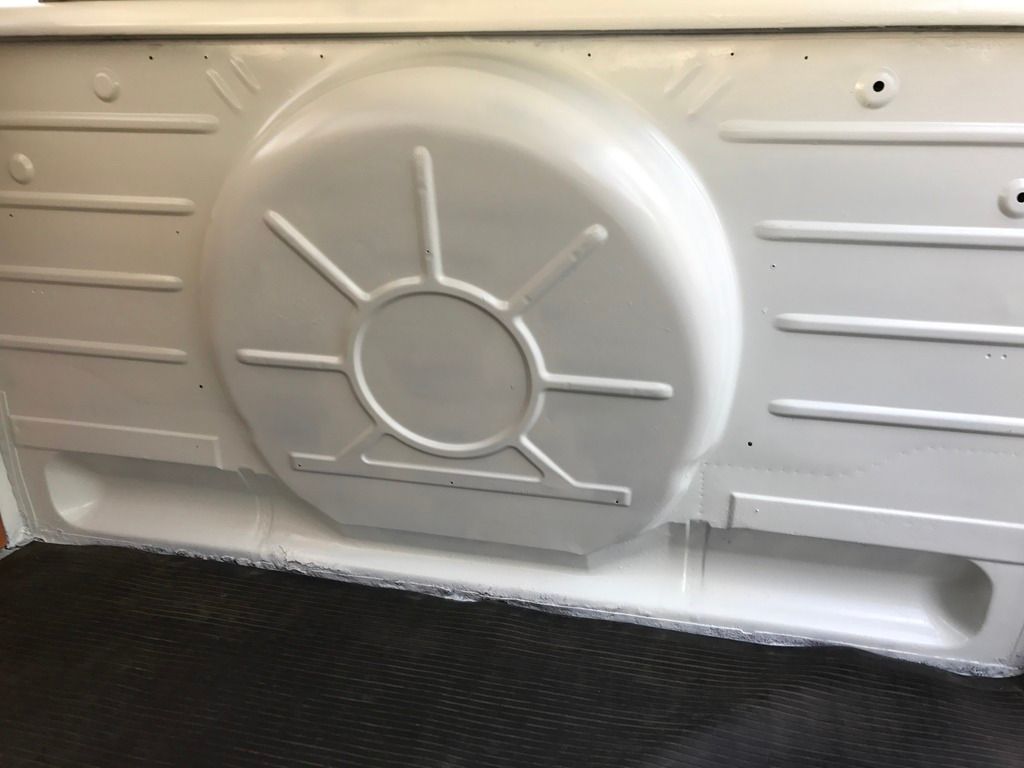

After.
3-4 coats of por15, primer and a couple coats of white

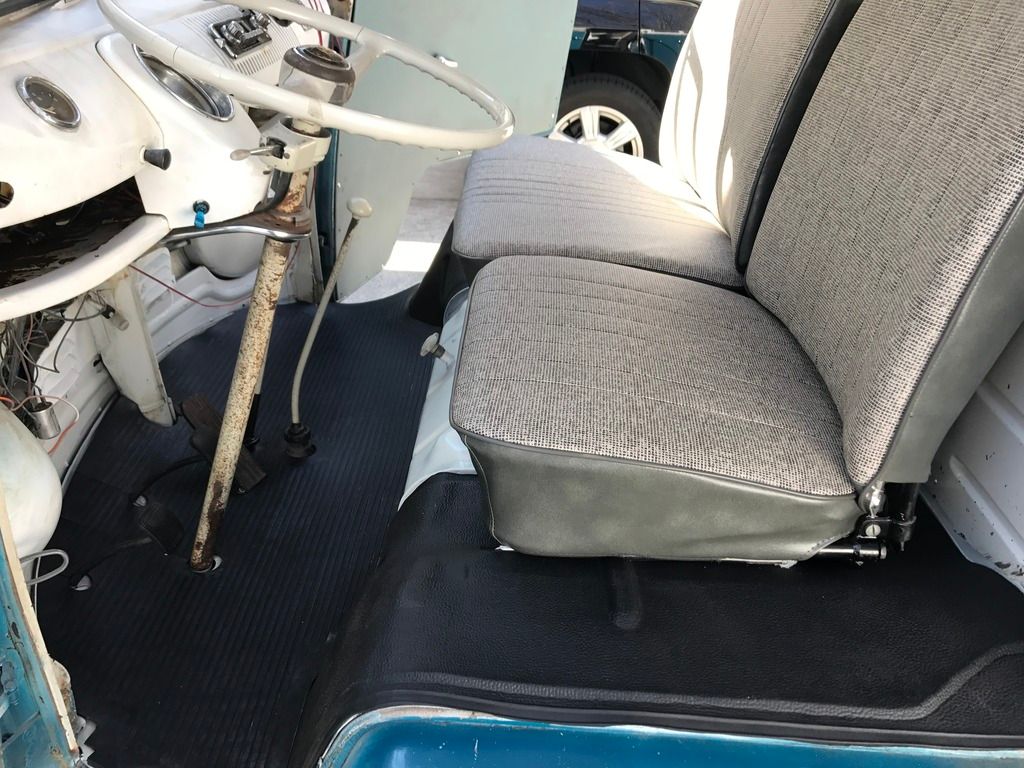

All new matts and seat covers

Raj · Post by **Raj** » Thu Mar 09, 2017 4:54 pm

Looking good!

nyr208 · Post by **nyr208** » Thu Mar 09, 2017 6:47 pm

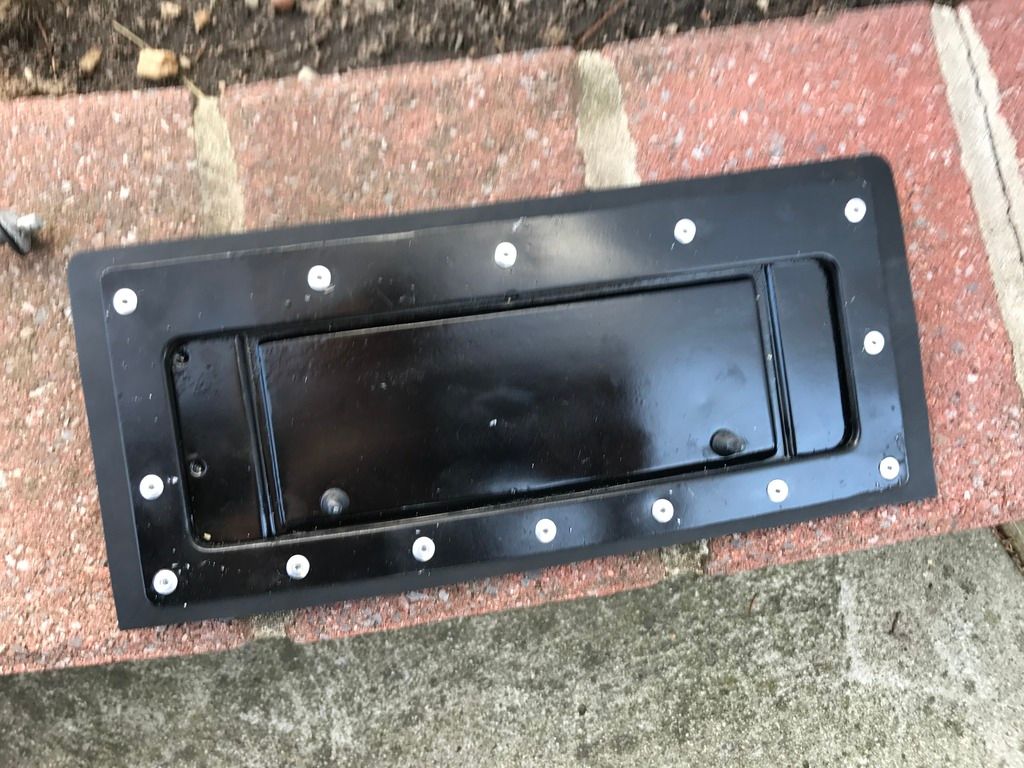

Repainted and put new seals in the fresh air vent

Bulkhead was rusty and full of glue.

Tom · Post by **Tom** » Thu Mar 09, 2017 8:21 pm

Manny would not approve of all this clean and new stuff .

elrockk · Post by **elrockk** » Thu Mar 09, 2017 8:59 pm

looking good you do some nice work

nyr208 · Post by **nyr208** » Mon Sep 25, 2017 9:13 pm

A couple of weeks ago Manny and I out in safari windows
