does anyone have a junk dual port engine i could have or borrow? i need to mock up/fabricate an intake manifold for my fuel injection project
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

12 feet of 2 inch aluminum for intake/turbo tubing Image
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

i had to grind some tabs off the injectors and hand sand the injector bodies to get them to fit Image Image came out nice Image Image Image
User avatar
Tom
Posts: 1047
Joined: Sun Sep 14, 2008 12:02 pm
First Name: Tom
Location: Under the bus

Re: my project 71

Post by Tom »

Coming along nicely. Keep at it !
I'm not an air cooled snob , I like them all !
Brown wrote:Tom is right!
User avatar
Raj
Posts: 1935
Joined: Tue Sep 09, 2008 8:03 pm
Location: Long Island, NY

Re: my project 71

Post by Raj »

very excited to see the outcome on this....!
Glenn wrote:I have to say, this "gruppe" is so much more than just a car club.
MrBreeze wrote: This is the DVG board. The threads flow as they flow.
Deal with it.
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

got some AN#6 fittings and cut the step off the inside Image Image Image Image tried to cut off the fuel injector cups from the fuel rails i have and relocate them but that was a mess so time for plan B
Big_kid

Re: my project 71

Post by Big_kid »

Keep at it- the world is watching and learning.
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

heres plan B I had some high pressure fuel lines in my junk pile Image cut the ends off and brought them to work and drilled the threads out to 14mm Image the one on the left is the thin factory one way to thin for me to weld the new ones are beefy Image and here is a mock up of what im shooting for Image.im gonna ask a friend weld it up so it comes out nice
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

got my intake flanges roughed out Image now just need to sand them to the mark and find my e saw set
Big_kid

Re: my project 71

Post by Big_kid »

Keep at it, it's motivating seeing others making progress on their projects too.
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

had some time today so i made wooden intake flange so i could fine tune it better Image then cut and drilled one from the aluminum rough cuts came out nice Image Image 3 more to go
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

back n the garage pulled the gas tank Image drilled some holes for electric fuel pump Image going to sandwitch 2 pieces of aluminum with AN6 fittings Image for fuel pump return line and wires

my table of insperation or as my wife calls the shit table Image Image Image
User avatar
Raj
Posts: 1935
Joined: Tue Sep 09, 2008 8:03 pm
Location: Long Island, NY

Re: my project 71

Post by Raj »

Love the can of bud, prominently displayed in a few pics.
Glenn wrote:I have to say, this "gruppe" is so much more than just a car club.
MrBreeze wrote: This is the DVG board. The threads flow as they flow.
Deal with it.
Big_kid

Re: my project 71

Post by Big_kid »

Can't wait to see the finished product!
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

yes Raj working on the bug always involves a bud
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

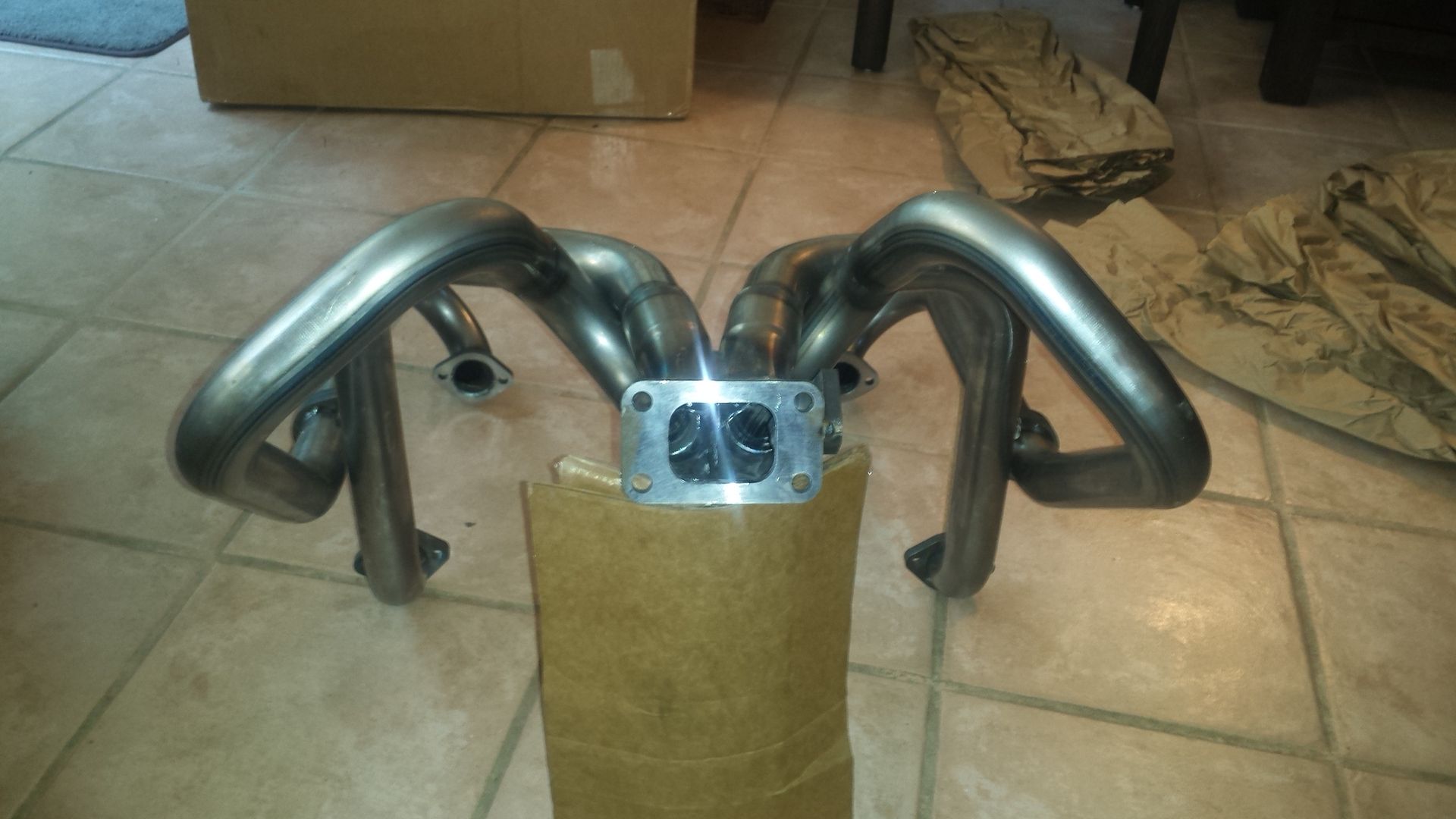

got my mid engine header today s744.photobucket.com gonna put the turbo in the backseat area Image Image
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

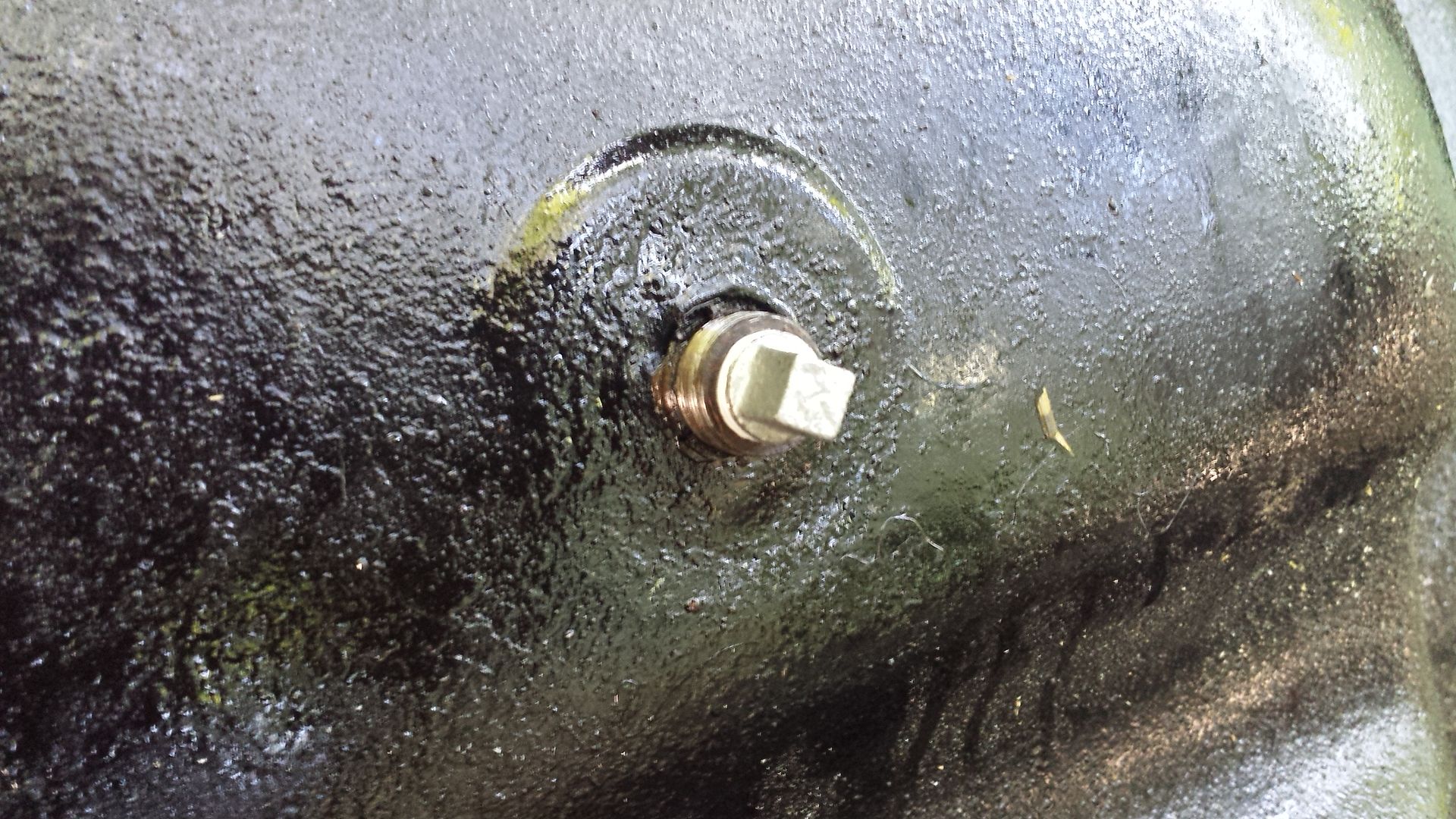

got some time on the bug Image tapped the gas tank to 1/4 pipe Image and plugged the hole for now Image made the bottom plate to sandwich the electric fuel pump onto the gas tank Image Image i just need to weld some aluminum bolts to the bottom plate and weld a support for the fuel pump
Big_kid

Re: my project 71

Post by Big_kid »

VERY nice! Very custom too!
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

so Santa was very nice this year Image got mostly everything to get it done
Big_kid

Re: my project 71

Post by Big_kid »

Looking forward it seeing it done!
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

back on the fuel tank today Image rusted on bad reseal Image so i did old school clean the tank with bbs and ball bearings. Image Image will wash with gas tomorrow and reseal
User avatar
Raj
Posts: 1935
Joined: Tue Sep 09, 2008 8:03 pm
Location: Long Island, NY

Re: my project 71

Post by Raj »

Nice..... I usually use an old chain. Keep up the good work!
Glenn wrote:I have to say, this "gruppe" is so much more than just a car club.
MrBreeze wrote: This is the DVG board. The threads flow as they flow.
Deal with it.
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

ready for the change from carb to EFI Image
User avatar
elrockk
Posts: 396
Joined: Mon Jun 01, 2015 6:26 pm
First Name: Gene
Vehicle Year: 1971
Model: Beetle
Location: Huntington

Re: my project 71

Post by elrockk »

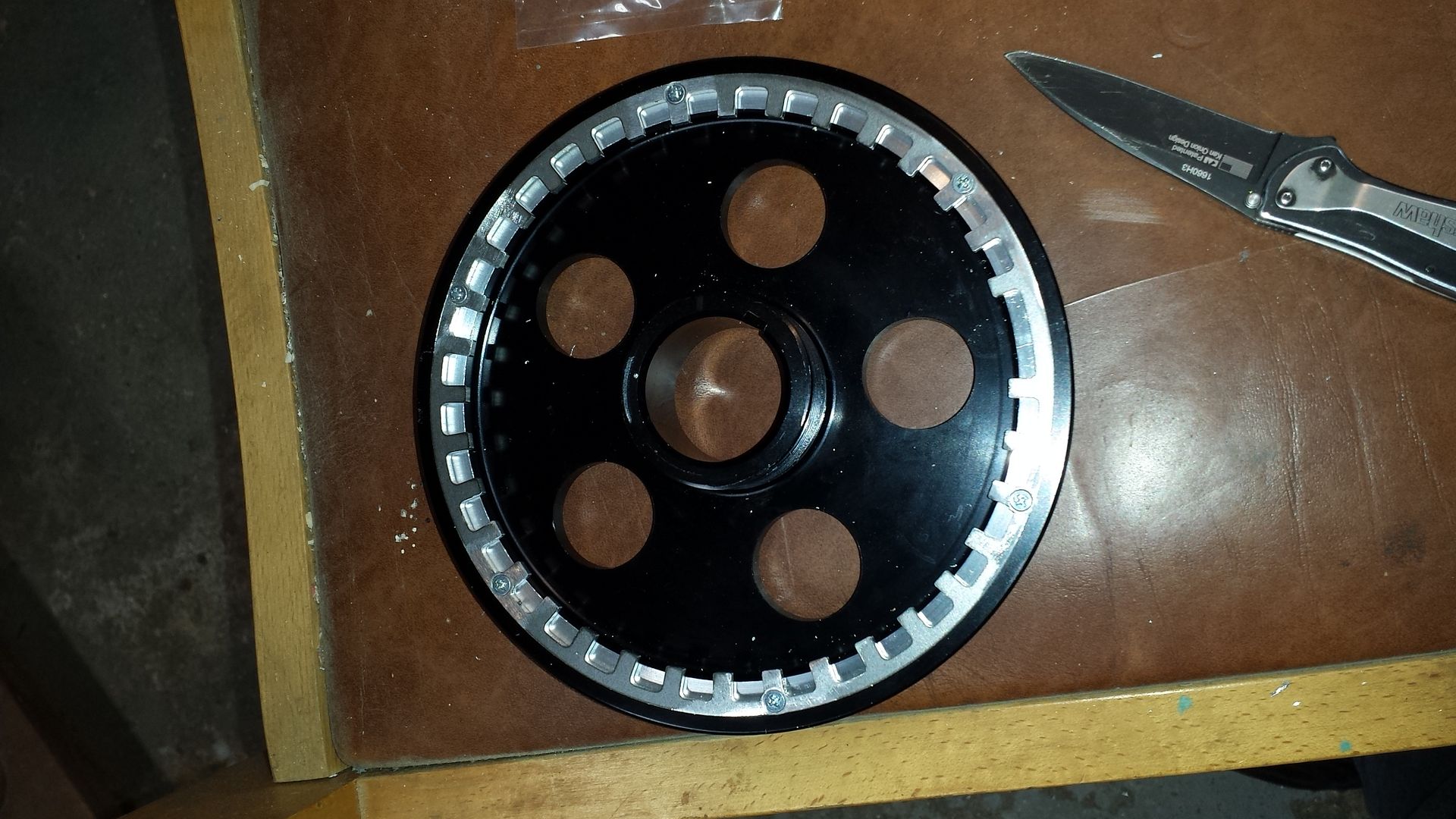

got busy today indexed the crank trigger wheel found this sticky tape measure at Hobby Lobby it help me find the center of the missing tooth Image drilled the holes Image Image tapped the threads Image counter sunkthe bolt holes Image will take it apart tomorrow hit it with some brake clean put locktite on the screws and move foward
